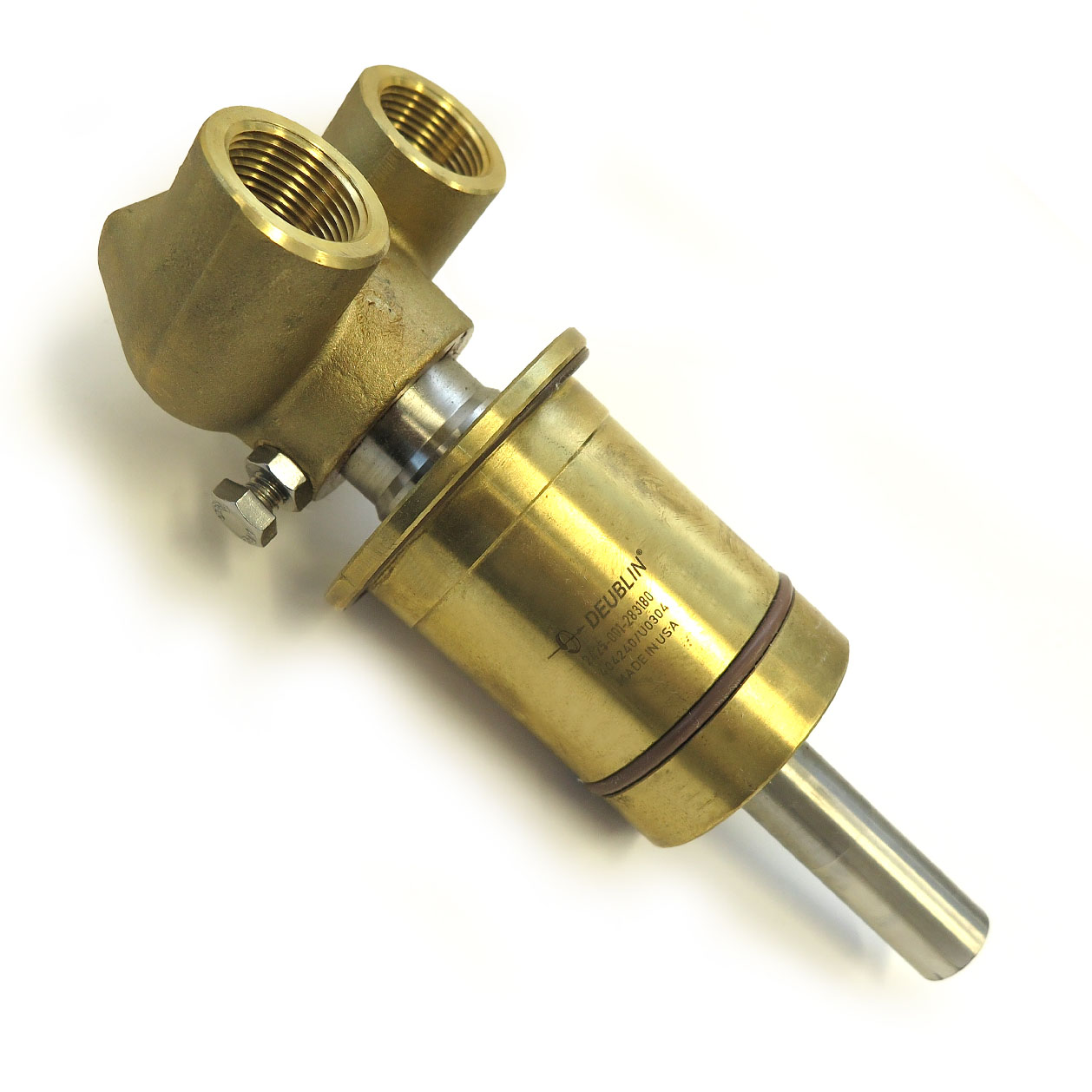

2425-001-283180
- Monoflow and duoflow design
- In-the-shaft mounted
- Self-supported rotating union
- Flanged housing or mounted with retaining plate
- Balanced mechanical seals
- Seal combination: Silicon Carbide/Silicon Carbide
- Brass housing and elbow
- Stainless steel rotor and supply pipe
- Engineered sleeve bearing
- Full-media flow
- Easily field repairable
Imperial
Metric
Dimensions
A
2.87"
A
72.9 mm
B
3/4"-14 NPT
C
2.31"
C
58.67 mm
D1
216 mm
D1
8.504"
E
6.26"
E
159 mm
F
141 mm
F
5.551"
G
0.669"
G
17 mm
I
58.67 mm
I
2.31"
J
1.969"
J
50 mm
K
3/4"-14 NPT
R
197 mm
R
7.756"
S
1.496"
S
38 mm
S2
0.744"
S2
18.9 mm
S3
Rotating
X
0.472"
X
12 mm
Operating Specifications
Media
Water
Rotor Connection
O-ring, 58.67 mm pilot
Rotor Connection
O-ring, 2.31" pilot
Housing Connection
3/4"-14 NPT
Water
Max. Flow
14 GPM
Water
Max. Flow
53 l/min
Water
Max. Pressure
10 bar
Water
Max. Pressure
150 psi
Water
Max. Temperature
121 °C
Water
Max. Temperature
250 °F
