6300-001-103
- Monoflow and duoflow design
- Self-supported rotating union
- Radial housing connection
- Balanced mechanical seals
- Steel-banded floating seal
- Easy and quick replacement of sealing components
- Full-media flow
- Vent slots
- Cast iron housing
- Steel rotor flanged/threaded
- Seal Combinations: Carbon Graphite/Tungsten Carbide standard, Silicon Carbide/Tungsten Carbide for severe conditions such as poor water quality
Imperial
Metric

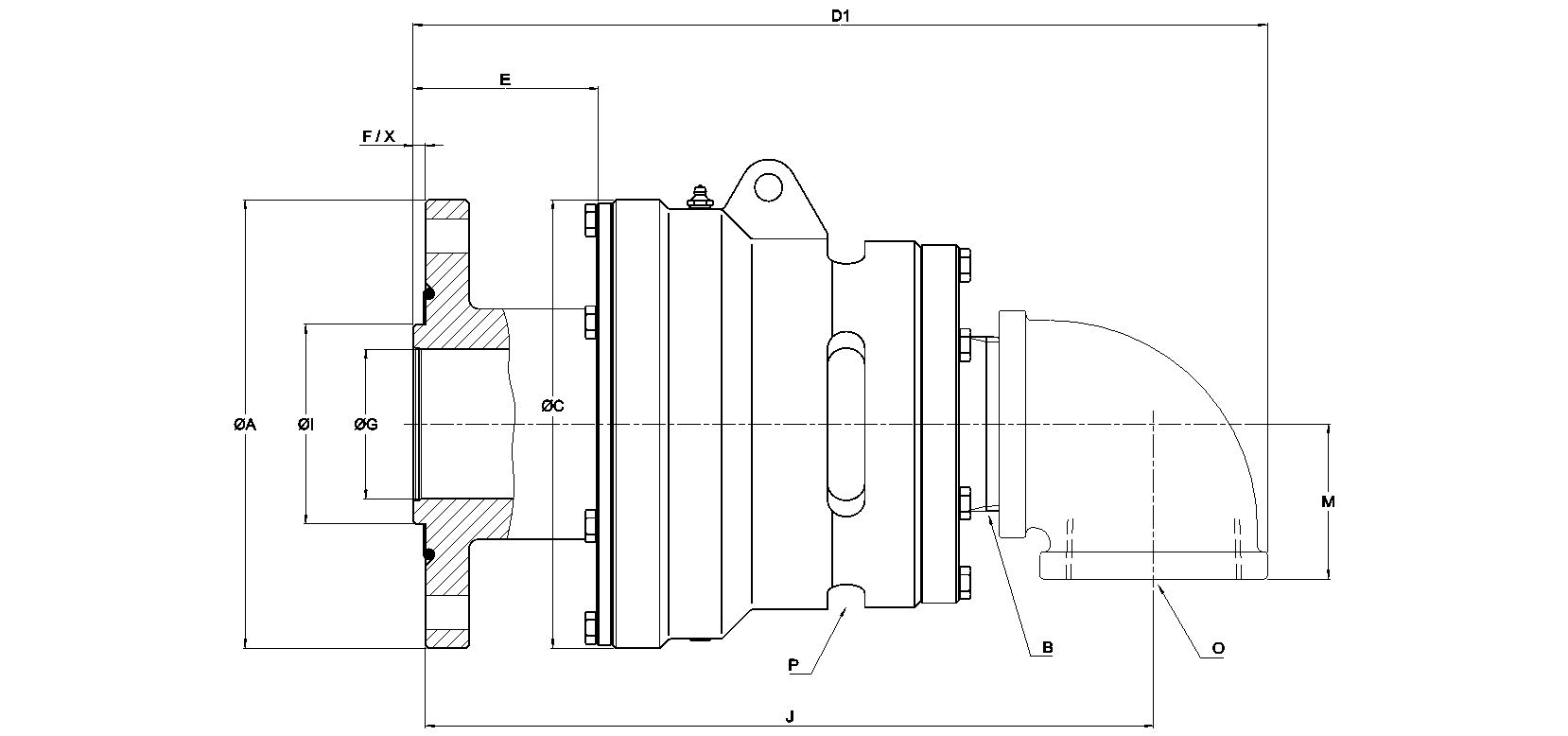

Dimensions
A
228.6 mm
A
9"
B
3"-8 NPT
C
229 mm
C
9.016"
D1
430 mm
D1
16.929"
E
3.677"
E
93.4 mm
F
0.252"
F
6.4 mm
G
3"
G
76.2 mm
I
101.7 mm
I
4.004"
J
14.646"
J
372 mm
M
79 mm
M
3.11"
O
NPT 3"-8 RH
P
Non-Threaded
X
0.252"
X
6.4 mm
Operating Specifications
Media
Water
Rotor Connection
228.6 mm Flange, 101.7 mm pilot
Rotor Connection
9" Flange, 4.004" pilot
Housing Connection
3"-8 NPT
Water
Max. Pressure
10 bar
Water
Max. Pressure
150 psi
Water
Max. Temperature
121 °C
Water
Max. Temperature
250 °F
