| Deublin Teilenummer | Versorgungs anschluss | Rotor anschluss | Gesamtlänge | Gehäuse durchmesser | Maximaler Druck und Medien | Maximale Drehzahl | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|

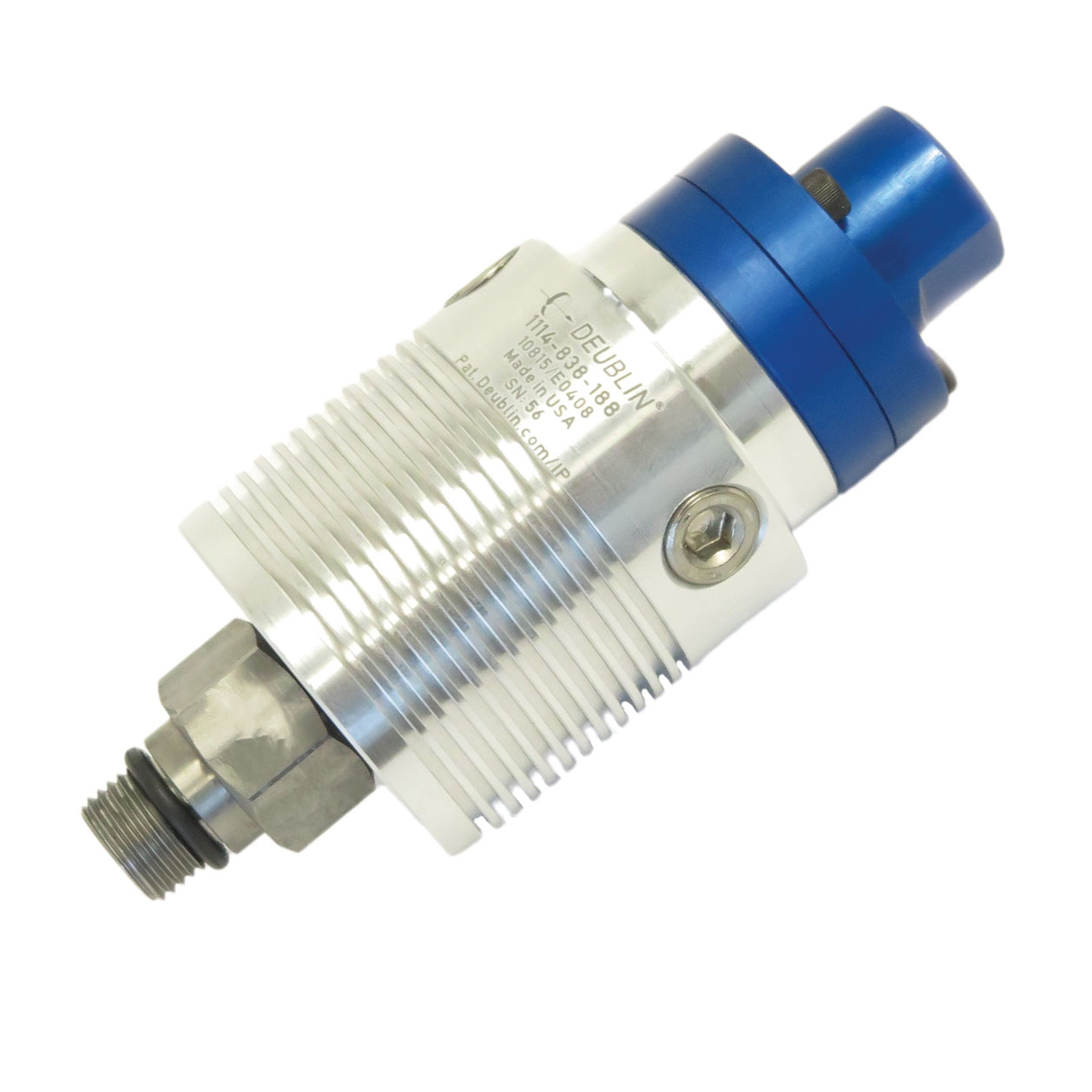

1114-838-188 | 3/8"-19 PT | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 131 mm | 5.157" | 53.5 mm | 2.106" |
10 bar Luft 103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
150 PSI Luft 1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|
1114-041-188 | 3/8"-19 PT | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 132 mm | 5.197" | 53.5 mm | 2.106" |
10 bar Luft 103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
150 PSI Luft 1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|
|
1114-011-165 | 5/8"-18 UNF LH, 16.649 mm pilot | 5/8"-18 UNF LH, 0.655" pilot | 20000 RPM | |||||||
|
|
1114-010-165 | 3/8"-18 NPT | 5/8"-18 UNF LH, 16.65 mm pilot | 5/8"-18 UNF LH, 0.656" pilot | 137 mm | 5.394" | 53.5 mm | 2.106" |
10 bar Luft 103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
150 PSI Luft 1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|
|
1114-011-165 | 3/8"-18 NPT | 5/8"-18 UNF LH, 16.649 mm pilot | 5/8"-18 UNF LH, 0.655" pilot | 131 mm | 5.157" | 53.5 mm | 2.106" |
10 bar Luft 103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
150 PSI Luft 1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|
|
1114-020-192 | M16x1.5 LH, 16.025 mm pilot | M16x1.5 LH, 0.631" pilot | 53.5 mm | 2.106" |
10 bar Luft 103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
150 PSI Luft 1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM | |||
|
|
1114-040-188 | 3/8"-19 PT | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 138 mm | 5.433" | 53.5 mm | 2.106" |
10 bar Luft 103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
150 PSI Luft 1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|
1114-021-188 | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot |
10 bar Luft 103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
150 PSI Luft 1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM | |||||
|
|
1114-020-192 | G 3/8"-19 | M16x1.5 LH, 16.025 mm pilot | M16x1.5 LH, 0.631" pilot | 138 mm | 5.433" | 53.5 mm | 2.106" |
10 bar Luft 103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
150 PSI Luft 1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|
|
1114-021-188 | G 3/8"-19 | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 132 mm | 5.197" | 53.5 mm | 2.106" |
10 bar Luft 103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
150 PSI Luft 1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|
1114-020-188 | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot |
10 bar Luft 103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
150 PSI Luft 1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM | |||||
|
|
1114-020-188 | G 3/8"-19 | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 138 mm | 5.433" | 53.5 mm | 2.106" |
10 bar Luft 103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
150 PSI Luft 1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
